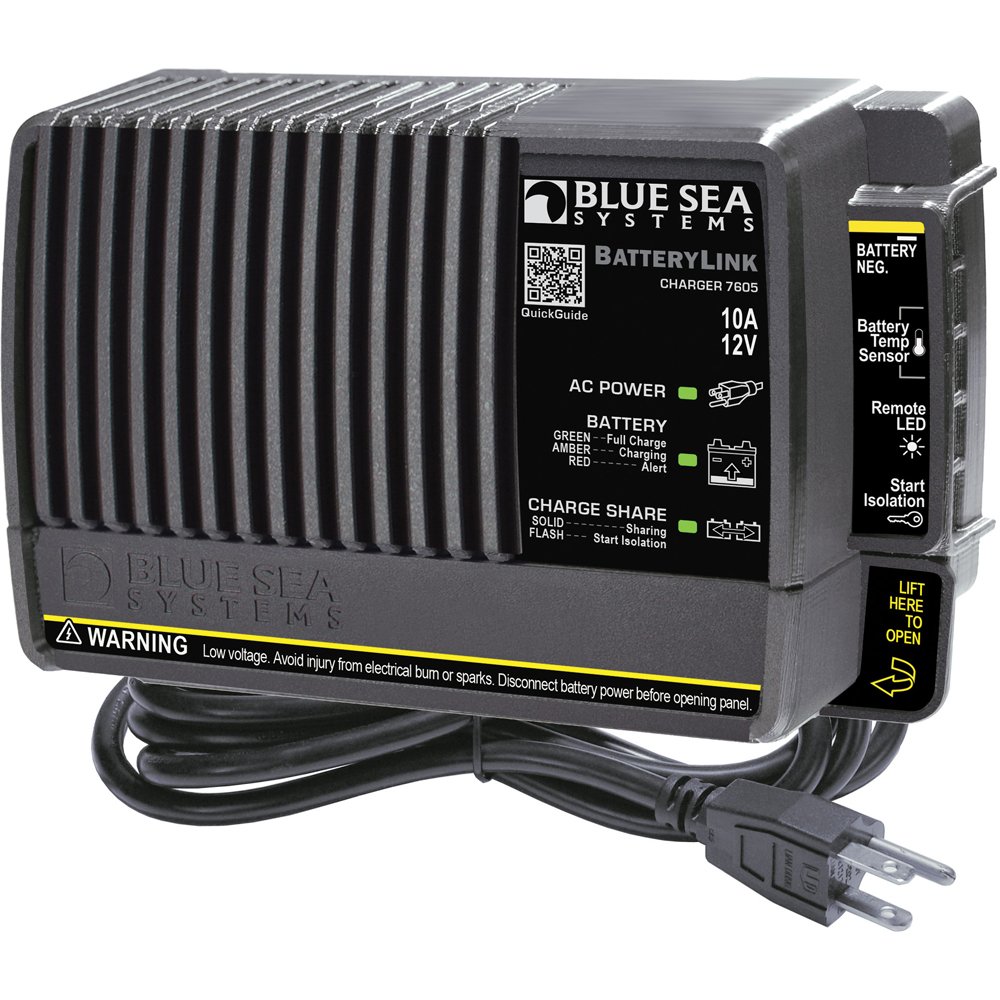

Blue Sea 7605 BatteryLink® Charger - 10Amp - 2-Bank
BatteryLink® Charger - 10Amp - 2-Bank
Charge two batteries at or away from the dock with a 10A multistage battery charger and integrated 65A Automatic Charging Relay (ACR)
Specifications
Charge two batteries at or away from the dock with a 10A multistage battery charger and integrated 65A Automatic Charging Relay (ACR)
- AC charging at the dock: Use AC shore power to charge two isolated battery banks with the 3 Stage 10 Amp battery charger
- DC charging away from the dock: Share the DC power from the alternator with both the Start and the Auxiliary battery through the integrated 65A ACR
- Battery Temperature Compensation prolongs battery life
- Start isolation protects sensitive electronics from voltage sags and spikes
- Includes LED remote indicator for charge status at the helm
- Snap-on insulating cover
- One-piece stainless flange nuts ensure safe and secure connections
Specifications
- Total Output Current: 10A
- Nominal Voltage: 12V DC
- Number of Outputs: 1 negative / 2 positive
- Terminal Stud Torque: 60 in-lb (6.78 Nm)
- Continuous Rating:65A
- Intermittent Rating:115A
- Universal AC Input Voltage: 90-265V AC
- AC Input Frequency: 50/60Hz
- Typical Float Voltage:13.5V DC
- Battery Types: AGM / Flooded / TPPL - Do not mix battery types
- Cable Size to Meet Ratings:10 AWG Negative Cable / 6 AWG Positive Cable
- Maximum Battery CCA: 850CCA
- Maximum Cable Size: 1/0 AWG (50mm)
- Operating Current: 10mA (No AC Power, ACR Open) / 60mA (No AC Power, ACR Closed)
- Recommended Battery Bank Sizes: 60Ah Minimum
- Terminal Stud Size:1/4"-20 (accepts M6 ring terminal)
- Warranty: 5 Year
- Combine 30 sec: 13.5V
- Combine 2 Min: 13.0V
- Open 10 sec: 12.35V
- Open 30 sec: 12.75V
